8520

TIJ

FEATURES

Line Speed / Resolution Capability

Maximum resolution of 600×600 dpi

5-360fpm (1.5-109mpm) at 600×240 dpi

Higher line speeds are possible at lower horizontal print resolutions

Printing Capabilities

Full downloadable font support using TrueType® fonts

Fixed, variable and merged text fields

Flexible date/time and shift code formats

Auto best before date calculations

Auto incrementing/decrementing text and counters

Multiple graphic formats supported (up to maximum print area)

Bar Codes

EAN8, EAN13, UPC-A/E, CODE 39, CODE128, EAN128, GS1 DataBar (including 2D composite), DataMatrix, QR, PDF417

Print Cartridge

Maximum of four 12.7mm tall, 600 dpi print cartridges (stacked/stitched or deployed independently)

Features available with authentic Videojet TIJ ink cartridges: auto cartridge recognition and parameter set up, ink batch/lot number tracking; portable ink level tracking and enhanced print speeds

Display

8.4-inch TFT SVGA (800×800) full-color LCD and touch screen WYSIWYG print preview

Full on-board diagnostics

Three levels of password protection or advanced configurable password protection

Extensive language support (22 in total)

Data Interface

RS232, Ethernet, USB memory stick support, Text Communications Protocols

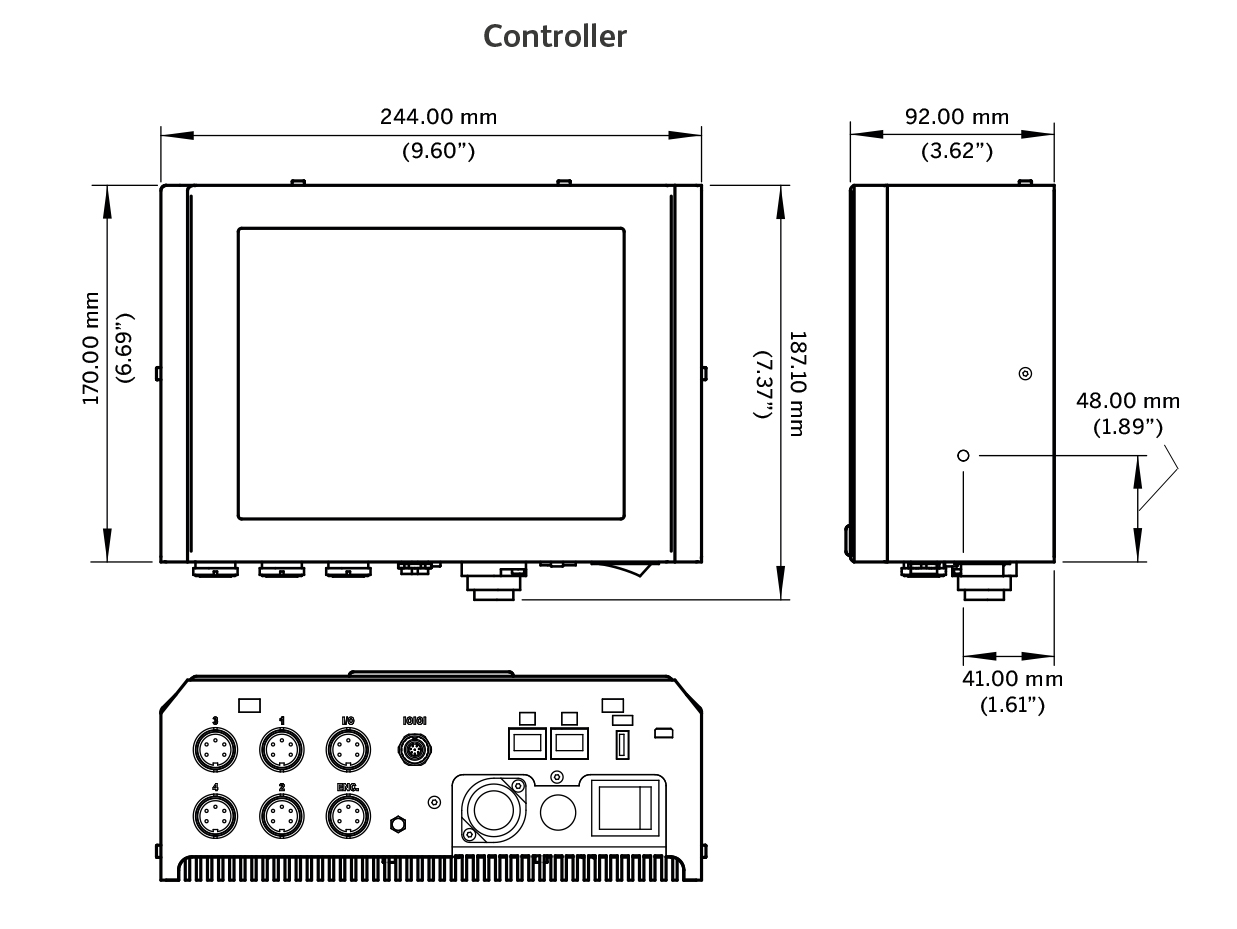

Controller Dimensions

9.6” (244mm) long
3.6” (92mm) wide
6.7” (170mm) high

Dimensions exclude printhead, accessory cables and power supply connections

Printhead Dimensions

CLARiTY Configuration Manager (included)

External Communications

Four printhead options are available with different dimensions to meet line integration requirements. The following dimensions are for the Standard Blue printhead:
4.5” (115 mm) long
4.3” (110 mm) high
2.4” (60 mm) wide (at rub plate)

Dimensions exclude cartridge and cable connections Red, Green, and Gold printhead dimensions vary in length and height from Blue printhead

Temperature Range

41°F to 113°F (5°C to 45°C)

Electrical Requirements

100-240 VAC 50/60Hz

Approximate Weight (Controller)

7.0lbs (3.2kgs)

Printer body
