6330

Printhead

32 or 53mm, 300dpi (12dot/mm)

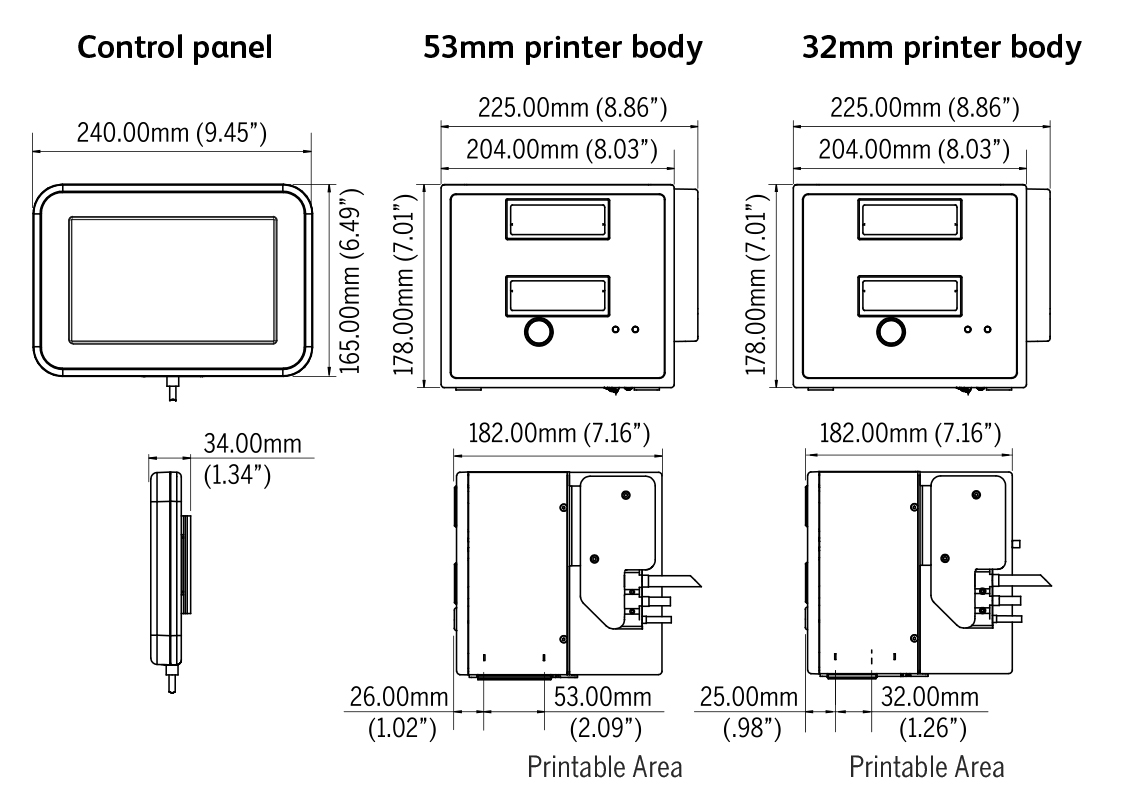

Print Area

32mm intermittent printing mode: 1.3” (32mm) wide x 3.0” (75mm) long

32mm continuous printing mode: 1.3” (32mm) wide x 7.9” (200mm) long

53mm intermittent printing mode: 2.1” (53mm) wide x 3.0” (75mm) long

53mm continuous printing mode: 2.1” (53mm) wide x 7.9” (200mm) long

Minimum print speed

Intermittent mode: 1.6 in./sec (40mm/sec) full print quality; 0.4 in./sec (10mm/sec) draft mode print quality

Continuous mode: 1.6 in./sec (40mm/sec) full print quality; 0.04 in./sec (1mm/sec) draft mode print quality

Maximum print speed

29.5 in./sec (750mm/sec)

Maximum throughput

Up to 250 prints per minute

Printing capabilities

Full downloadable font support using TrueType® fonts (including multiple languages and Unicode support); fixed, variable and merged text fields; flexible date/time formats; flexible shift code formats; auto best before date calculations and concession management; calendar rules; auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to maximum print area); link fields to databases; scalable text and text blocks

Bar Codes

EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes), DataMatrix, QR; others available upon request

Operator interface

TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support

Ribbon range

Full assortment of wax/resin and resin ribbons

Maximum ribbon length

Lengths up to 1,200 meters available, dependent on ribbon composition and color

Ribbon widths

53mm: 0.8” (20mm) min, 2.2” (55mm) max
32mm: 0.8” (20mm) min, 1.3” (33mm) max

Nominal gap between successive prints

0.02” (0.5mm)

Ribbon saving features

Radial, interleaved, intermittent stripes

Image design software

Videojet CLARiSOFTTM, CLARiSUITE® or VideojetConnect™ Design Template Management software

Network management software

CLARiNET™

Remote coder configuration software

CLARiTYTM Configuration Manager
“Off-line” set up and parameter storage available as standard

Standard installation options leader/follower configuration

Up to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY control unit

Web browser mode

Control Videojet DataFlex® 6330 units remotely through the host packaging machine interface

External communications

RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows® drivers, ZPL and SATO emulations

External inputs/outputs

3 PNP inputs
2 relay outputs and 2 PNP +24V outputs

Power supply

100-240VAC

Operating temperature

0-40°C (32-104°F)2
