3350

Laser CO2

FEATURES

Marking speed

Up to 2,000 characters/sec. (application dependent)

Line speed

Up to 15m/sec. (49ft/sec.) (application dependent)

Marking window

Approx. 30.8×38.2mm2 to 601.0×439.8mm2

Wavelengths

10.6μm, 10.2μm and 9.3μm

Marking formats

Standard industrial fonts (Type 1 Windows® TrueType®) and Single line fonts Machine-readable codes (OCR, 2D-matrix, etc.)
Bar codes: BC25, BC251, BC39, BC128, GS1-128, EAN13, UPC_A, RSS14, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked, Omnidirectional, RSS Limited, RSS Expanded, etc.
2D codes: Datamatrix, DMRE, GS1, QR
Graphics, logos, symbols, etc.
Linear, circular, angular, reverse, rotate
Sequential and batch numbering
Automatic date, layer, and time coding; real-time clock
Dot mode enables marking 2D codes faster than traditional grid mode

Laser tube

Sealed CO2 laser, power class 30-Watt

Beam deflection

Steered beam with digital high-speed galvanometer scanners

Focusing

Focal lengths: 64/ 95/ 127/ 190/ 254 mm (2.5/ 3.75/ 5.0/ 7.5/ 10.0 inches);
63.5/ 85/ 100/ 150/ 200/ 300/ 351/ 400 mm (2.50/ 3.35/ 3.94/ 5.9/ 7.87/ 11.8/ 13.8/ 15.75 inches); 400/ 500/ 600 mm (15.75/ 19.68/ 23.62 inches)
94 – 144mm (3.7 – 5.6 inches)(Smart Focus head only)

Operator interfaces

TCS+ touch control software
Smart Graph software for PC; configurable in 30 languages (option)
CLARiTY™ control software

TCS+

Browser-enabled software for intuitive creation of complex jobs on standard web browser compatible devices
Support for 30 languages
Full user access control and role definition
Event log for history of user interactions
Graphical guided line setup wizard
Easy system and parameter configuration
WYSIWYG editor

Smart Graph software

Graphic-orientated user interface for Windows®
Text / data / graphics / parameter editor
Configurable in 30 languages, e.g. in German, English, Japanese
Easy import functions for the most important file formats (dxf, jpg, ai, etc.)

Communication

Ethernet (TCP/IP, 100Mbit LAN), EtherNetIPTM, ProfiNet®, RS232, digital I/Os
Inputs for encoders and product detector triggers
I/Os for start, stop, external error, job select, trigger, trigger enable, encoder;
system ready, ready to mark, marking, shutter closed, error, bad, good signals
and machine/ operator interlocks
Access box for Wi-Fi and cellular capability (Subject to availability in your country)
Customer-specific solutions

Integration

Direct integration into complex production lines via scripting interface
Flexible beam delivery options (beam extension unit/ beam turning unit)
Detachable umbilical for simple integration; available in 3 lengths

Electrical requirements

100-240 VAC (autorange), ~50/60Hz, 1PH, 0.70KW

Cooling system

Air cooled

Environment

Temperature 40-105° F (5-40° C)
Humidity 10%-90%, non-condensing

Sealing and safety standards

Supply Unit: IP54, optional IP65
Marking Unit: IP54, optional IP65
Optional safety module provides Performance Level d (PFL-d) in accordance
to EN ISO 13849-1
IEC/EN 60825-1

Approximate weight

Supply unit: IP54/IP65 25.4lbs. (11.5kg)
Marking unit: IP54 42.1lbs. (19.1kg); IP65 44.1lbs. (20kg)

Applicable certifications

CE, TÜV/NRTL, FCC, KC, BIS
Compliance (no certification required): ROHS, CDRH/FDA

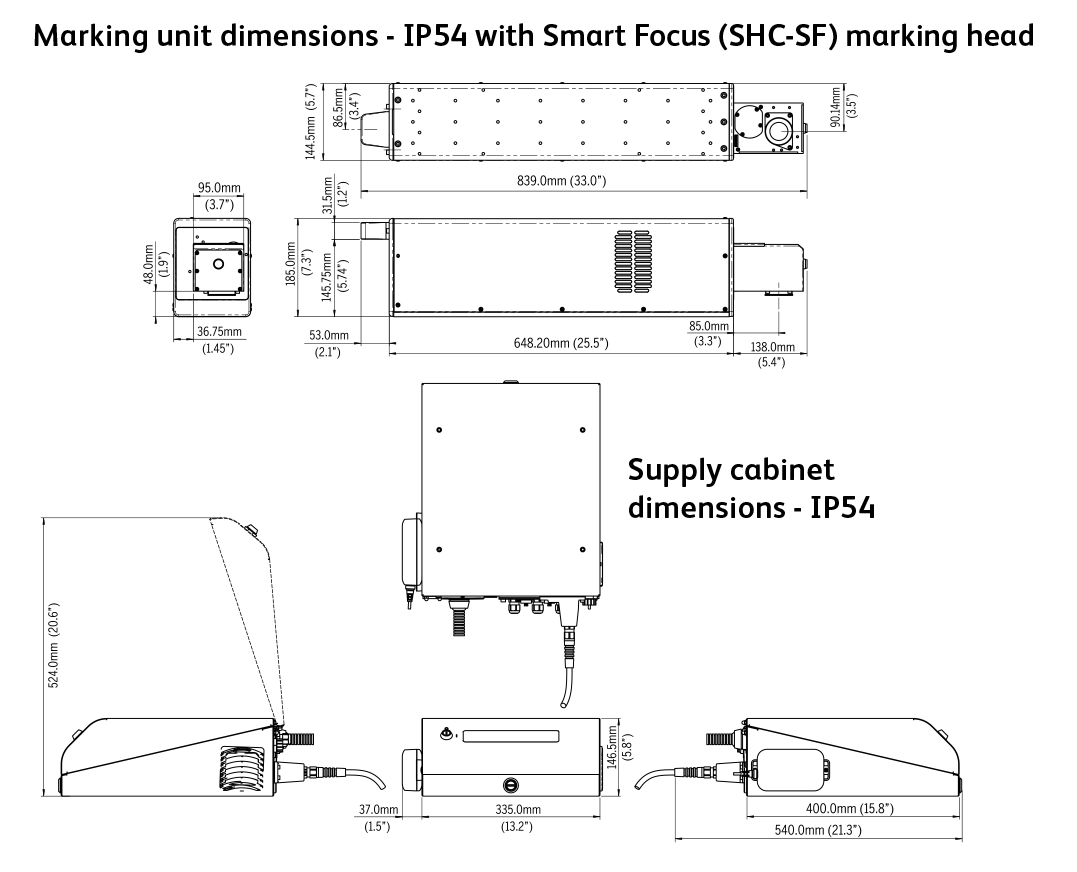

Printer body
