CIJ
Can print 1 to 5 lines of print at speeds of up to 960ft./min. (293 m/min.) (10 characters per inch, single line of print)
Single-line: 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16
Tri-line: 5×5, 4×7, 5×7, 7×9
Quad-line: 5×5, 4×7, 5×7
Five-line: 5×5
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; 2D DataMatrix; GS1
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 16×26, 26×26, 8×32, 32×32, 34×34, 12×36, 16×36, 16×48
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)
Membrane style with tactile feedback, including 72 numeric, alphabetic, and special
function keys. PC-style layout to approximate international PC convention.
320×240 Bright blue backlit 5.7” LCD display WYSIWYG onscreen message editing
Can be created by individual user on printer or PC with optional Videojet Logo Creator
software
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simple Chinese, Spanish,
Swedish, Thai, Traditional Chinese, Turkish and Vietnamese
RS232, RS485 and ethernet (standard)
CLARiSOFT/CLARiNET™ via RS232 and ethernet
Message management via USB
250 complex messages; unlimited storage using USB
IP65 standard; no plant air required; stainless steel cabinet
Heated printhead
Positive air (standard)

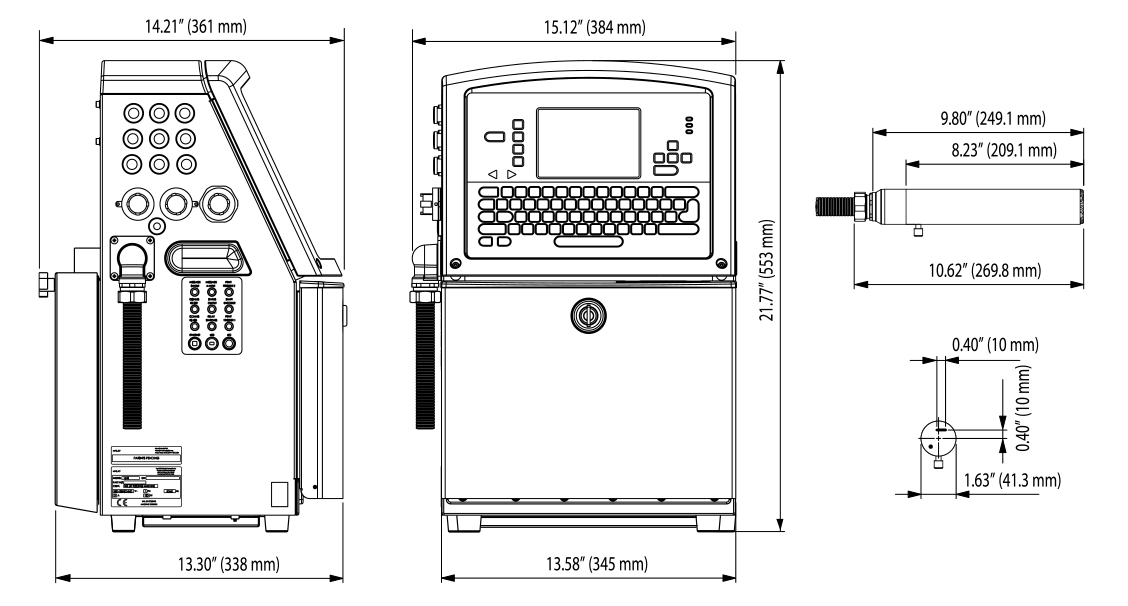

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)
Ultra flexible
Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)
As low as 2.4 ml per hour
Ink Smart Cartridge™ 0.793 qt. (750ml)
Make-up Smart Cartridge 0.793 qt. (750ml)
32°F to 122°F (0°C to 50°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W
Unpacked and dry: 46.2lbs. (21kg)
Dry air kit for high humidity (requires plant air)
60 or 70 micron nozzle
Food grade version
90 degree printhead
Wide range of accessories
