1610 CIJ - Tadbik

FEATURES

Line speed capability (per head)

Can print 1 to 5 lines of print at speeds of up to 960fpm (293mpm) (10 characters per inch, single line of print)

Font matrix configuration

Single-line: 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16
Tri-line: 5×5, 4×7, 5×7, 7×9
Quad-line: 5×5, 4×7, 5×7
Five-line: 5×5

Linear bar codes

UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; 2D DataMatrix; GS1

DataMatrix codes

10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 16×26, 26×26, 8×32, 32×32, 34×34, 12×36, 16×36, 16×48

Nominal character height

Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font

Throw distance

Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15m)

Keyboard

Membrane style with tactile feedback, including 72 numeric, alphabetic, and special function keys. PC-style layout to approximate international PC convention.

Display

320×240 Bright blue backlit 5.7” LCD display
WYSIWYG onscreen message editing

Custom logo/graphics

Can be created by individual user on printer or PC with optional Videojet Logo Creator
software

Character sets

Chinese, Russian/Bulgarian, Turkish/Scandinavian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American

Languages and interface options

English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

Data interface

RS232, RS485 and ethernet (standard)
CLARiSOFT™/CLARiNET™ via RS232 and ethernet
Message management via USB

Message storage

250 complex messages

Environmental protection

IP65 standard, no plant air required; stainless steel cabinet

Printheads

Heated printhead
Positive air (standard)
Automatic calibration
Auto-clean design

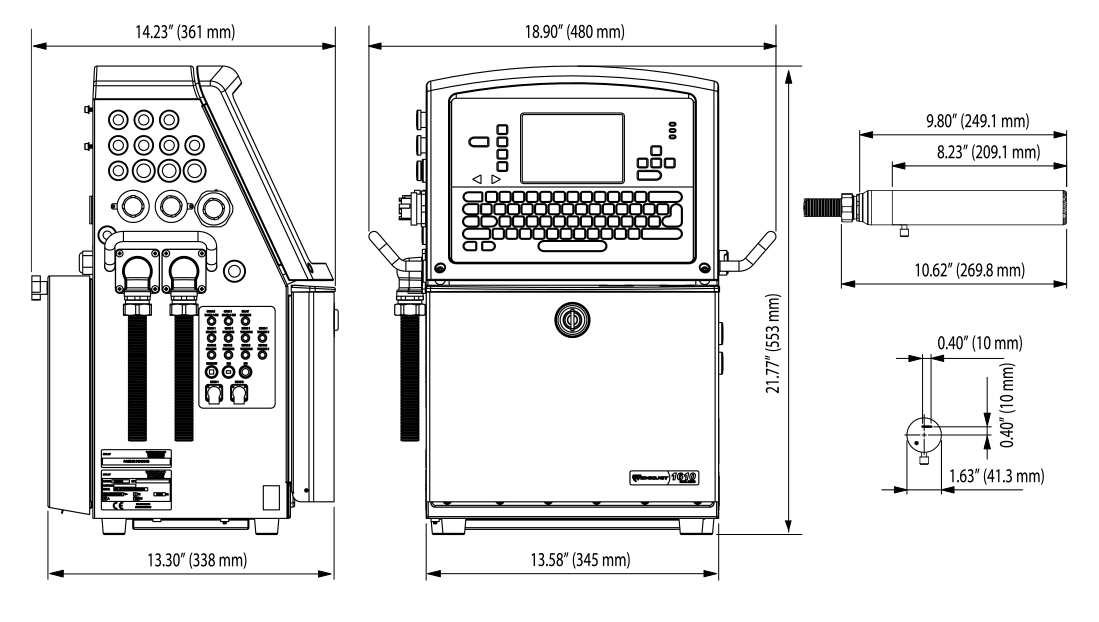

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)

Printhead umbilicals

Ultra flexible
Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.00” (101.6mm)

Fluids containers

Ink Smart Cartridge™ 0.793 qt. (750ml)
Make-up Smart Cartridge 0.793 qt. (750ml)

Temperature/humidity range

32°F to 122°F (0°C to 50°C) 0% to 90% RH non-condensing With selected inks; actual installation may require additional hardware based on production environment conditions

Electrical requirements

Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 120 W

Approximate weight

Unpacked and dry: 48.6lbs. (22kg)

Options

Dry air kit for high humidity (requires plant air) Food grade version 60 or 70 micron nozzle 90 degree printhead Wide range of accessories

1610
