Case Coders
Controller/input device; printhead; universal power supply; mounting bracketry and starter ink kit
Customized time and date codes
Rollover hour
Expiration date for automatic printing of up to two distinct dates of expiration
Shift organizer for automatic coding by particular shifts (up to 4 shifts)
Print delay for message placement
Character width adjustment
Consecutive incremental numbering
Dutch; English; Finnish; French; German; Greek; Italian; Katakana; Portuguese; Spanish; Swedish
Special application units include: Arabic; Chinese; Hebrew
Standard Print Height: 3/8 inch (10mm)
Optional Heights: 5/16 inch (7.9mm); 1/2 inch (12.7mm);
3/4 inch (20mm)
7 x 5 dot matrix, 54 printable ASCII characters
Printable accented characters
20 feet/min. (6.1mpm) to 200 feet/min. (61.0mpm)
Up to 40 characters
Up to 52 messages
40°F to 120°F (4°C to 49°C)
System uses a universal switching power supply.
Internally regulated ink system; factory set; no adjustment necessary
Bulk ink available up to five gallons
8 oz. (0.23 liter) bladder pressurized, non-aerosol ink bottle
14lbs. (6.4kg)

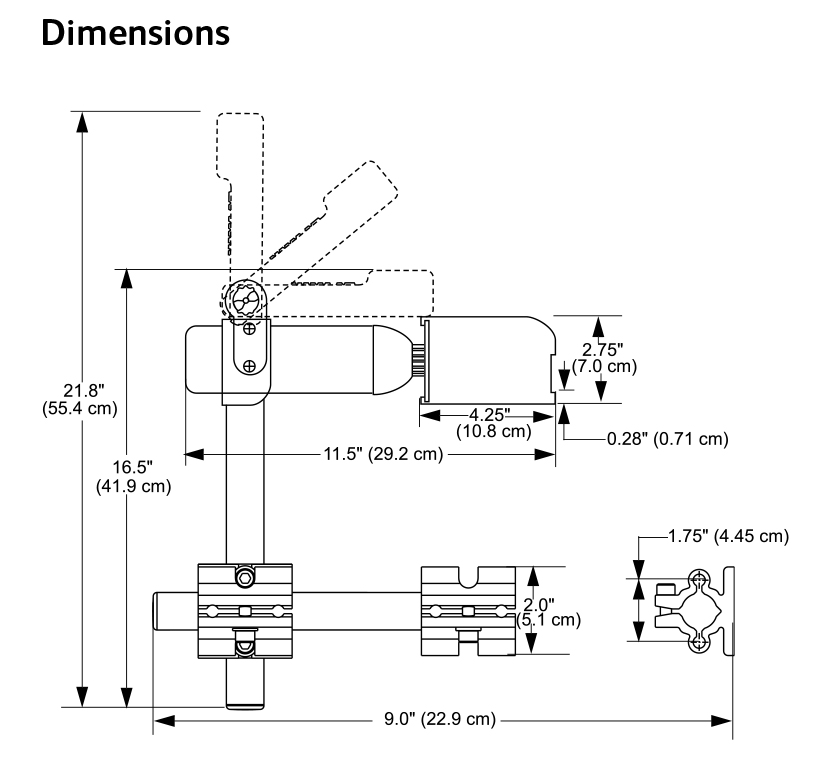

15 inch (38.9cm) and 9 inch (22.8cm) tubing with 1.0 inch (2.54cm) outside diameter (OD)
Long Reach Bracket Kit available for special mounting situations Remote Bracket Assembly Kit enables printhead to be mounted up to 20 feet (6.1m) from controller
